Creating Scenes

A Scene contains the OpenGL content to be rendered and it defines various scene properties such as the background color or the size of the frame to be rendered. Moreover, the scene also keeps track of the camera parameters as well as any lighting added in the scene. Note that the default Scene object contains a single perspective camera and a single diffuse light.

All scenes have the ability to contain multiple objects that can be rendered. It is possible to add and remove renderables in the scene using the add() and remove() methods of a scene. Moreover, it is also possible to render all objects on the framebuffer using the render() method of a scene.

To create a Scene it simply suffices to call the class constructor. You can optionally specify the background color and the size of the framebuffer.

>>> from simple_3dviz import Scene
>>> s = Scene()
>>> s.render()
# The default background is white and the default size of the framebuffer is
# (256, 256)
>>> s.frame
... array([[[255, 255, 255, 255],
...         [255, 255, 255, 255],
            ...
...         [255, 255, 255, 255]]], dtype=uint8)

# Now we create a scene with black backround and framebuffer size (512, 512)
>>> s = Scene(background=(0.0, 0.0, 0.0, 1.0), size=(512, 512))

Adding Renderables

We can add objects to a scene simply using the add() method. Note that the objects that can be added should implement the Renderable interface.

>>> from simple_3dviz.renderables import Spherecloud

>>> import numpy as np
>>> import matplotlib.pyplot as plt
>>> t = np.linspace(0, 4 * np.pi, 20)
>>> x = np.sin(2 * t)
>>> y = np.cos(t)
>>> z = np.cos(2 * t)
>>> sizes = (2 + np.sin(t)) * 0.125
>>> centers = np.stack([x, y, z]).reshape(3, -1).T
>>> cmap = plt.cm.copper
>>> colors = cmap(np.random.choice(np.arange(500), centers.shape[0]))
# Create a renderable to be added in the scene
>>> r1 = Spherecloud(centers=centers, sizes=sizes, colors=colors)
>>> s.add(r1)

# Adjust the camera position
>>> s.camera_position = (-2.45, -3, 0.5)
>>> s.render()

# Save the framebuffer
>>> from simple_3dviz.utils import save_frame
>>> save_frame("scenes_renderable_1.png", scene.frame)

# Let's now add a mesh
>>> r2 = Mesh.from_file("models/baby_yoda.stl", color=(0.1, 0.8, 0.1))
>>> r2.to_unit_cube()
>>> s.add(r2)
>>> s.camera_position = (-0.3, -4, 0.1)
>>> s.render()
>>> save_frame("scenes_renderable_2.png", scene.frame)

# It is also possible to update the position of a mesh
>>> r2.rotate(35*np.pi/180)
>>> s.render()
>>> save_frame("scenes_renderable_3.png", scene.frame)

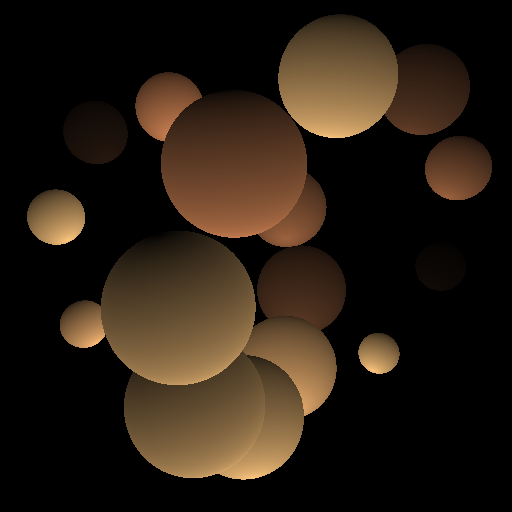

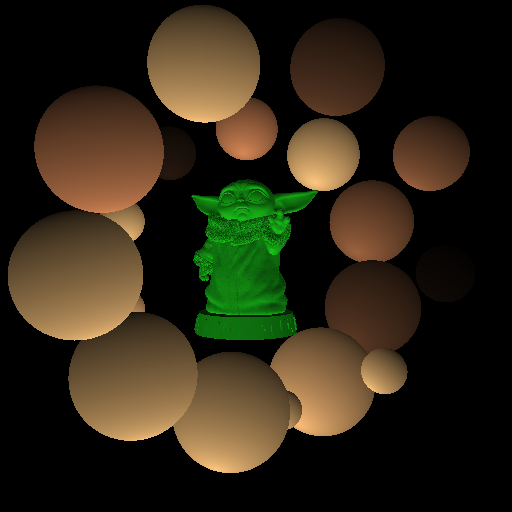

Renderable 1 Renderable 2 Renderable 3

Removing Renderables

Finally, removing objects can be easily done with the remove() function:

>>> s.remove(r1)
>>> s.render()
>>> save_frame("scenes_renderable_4.png", scene.frame)

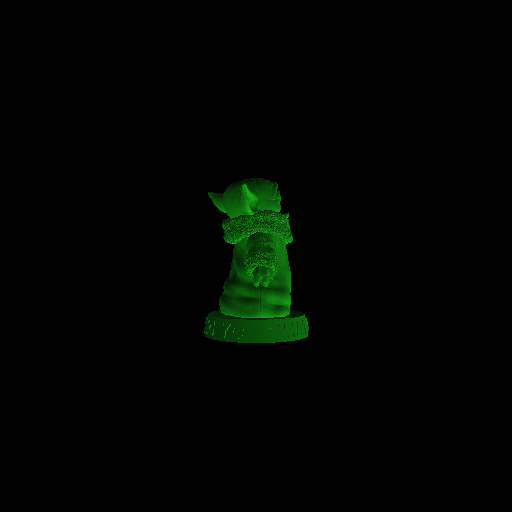

Renderable 4
